DCI0010F1V3

DC INSERTER

Designed to be deployed either indoor or outdoor to insert DC power or AISG OOK signals onto RF feeder cables in cellular base station systems, the DCI0010F1Vx has the following features and benefits:

FEATURES

  • Excellent PIM performance
  • Wide frequency band of operation
  • Indoor or outdoor use
  • Excellent lightning protection

technical specifications
rf
Passband698 - 2700MHz
Return loss20dB minimum
Insertion loss0.2dB maximum
Maximum input power with no damage200W (average) maximum
RF to DC port isolation50dB
Intermodulation, passive<155dBc with 2 x 20W carriers
electrical
RF impedance50ohms
dc
Voltage rating+40V DC
Current rating2.2A Continuous, 4A Peak maximum
DC resistance DC input to feeder<0.5ohm
Return loss 2.076 - 2.276MHz15dB minimum V3 and V4 versions only
Insertion loss 2.076 - 2.276MHz0.7dB maximum V3 and V4 versions only
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +140ºF
Ingress protectionIP67
Lightning protectionDC port = 2KA IEC 61000-4-5 8/20us waveform
RF ports = 10KA IEC 61000-4-5 8/20us waveform multiple strikes
MTBF>500,000 hours
mechanical
Dimensions H x D x W55 x 95 x 40mm | 2.16 x 3.74 x 1.57in
Weight0.7kg | 1.54lbs
Connectors1 x DIN 7/16(M), 1 x DIN 7/16 (F), DC/AISG passed to either connector; see ordering information for details
Connector 1DC in = SMA female
Protective earthM6 stud
ordering information
Part NumberDescription
DCI0010F1V1DC Inserter, DC through/from 7/16(F) connector
DCI0010F1V2DC Inserter, DC through/from 7/16(M) connector
DCI0010F1V3DC Inserter, DC/AISG through/from 7/16(F) connector
DCI0010F1V4DC Inserter, DC/AISG through/from 7/16(M) connector
optional accessories
Part NumberDescription
R18-0731Cable assembly - PDU to Bias-T SMA to SMA 5m
R18-0732Cable assembly - PDU to Bias-T SMA to SMA 10m
R18-0810-xCable assembly - PDU to Bias-T Molex 2 way to SMA “x”m

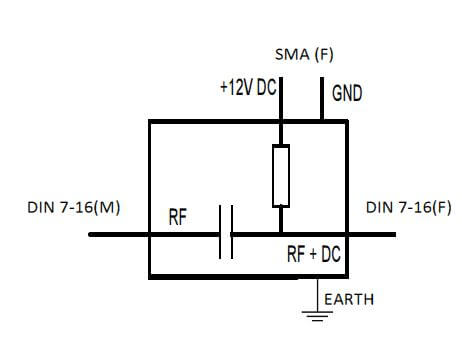

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

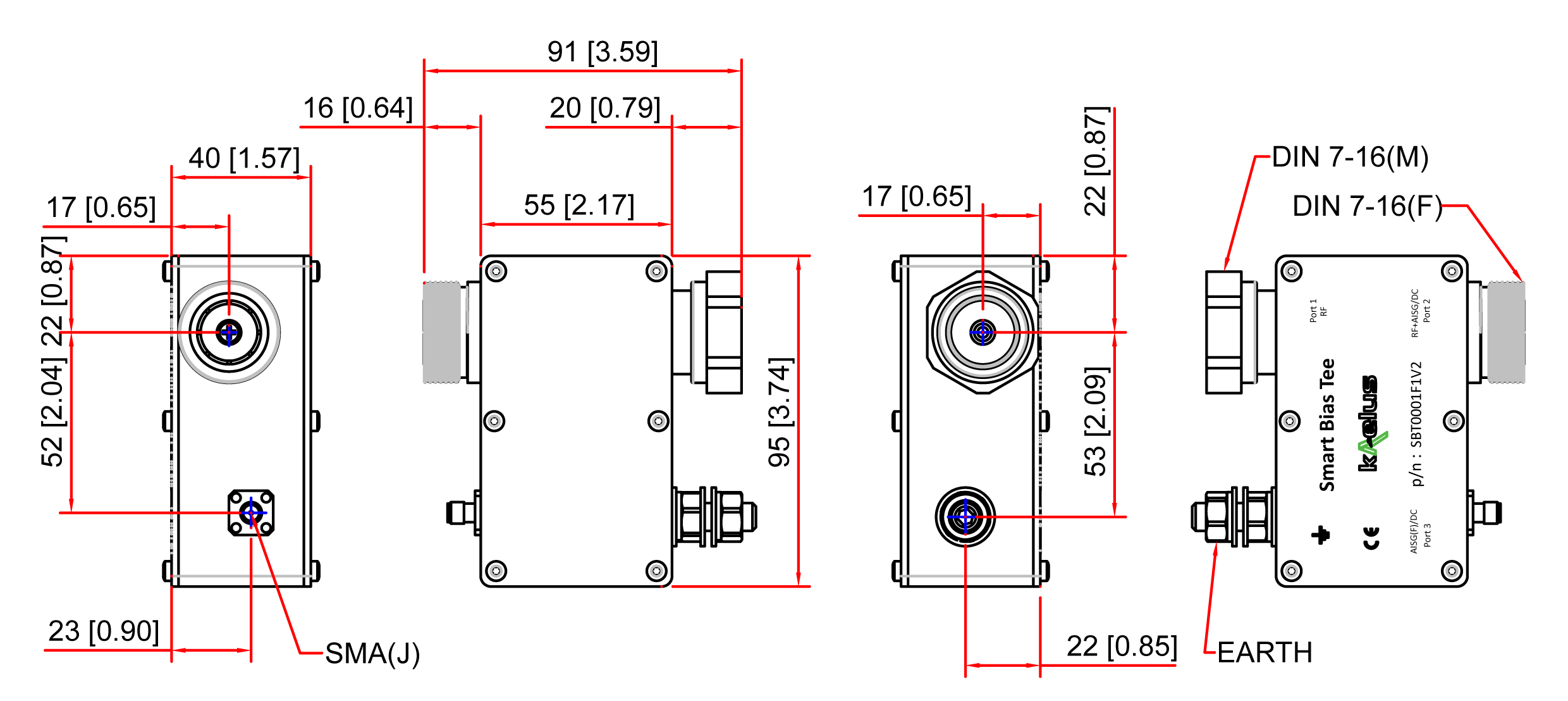

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
