DDF0015F10V2-1

TWIN DUAL DUPLEXED FILTER E900

The DDF0015 is deployed when co-locating 900 and 850MHz systems. Attenuating the 850MHz downlink band this filter prevents the 900MHz BTS receive being overloaded from 850MHz systems.

FEATURES

  • Filters unwanted carrier frequencies introduced when antennas from both 850 and 900MHz services are co-located
  • Twin dual duplex structure , 16MHz bandwidth
  • Excellent rejection in 850MHz band, low loss, high selectivity
  • Factory tuned anywhere in extended 900MHz band if required

technical specifications
Band Name Downlink (TX) Path Uplink (RX) Path
rf performance
Passband 944 - 960MHz 899 - 915MHz
Insertion loss 0.4dB typical 0.5dB typical
Return loss 20dB typical
Passband ripple 0.3dB maximum 0.4dB typical
Rejection 50dB minimum @ 869 - 894MHz
electrical
Impedance 50ohms
Intermodulation products -160 dBc max ( 2x 20 W carriers, in receive band)
Maximum input power 150W (average)
800W (PEP)
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -30ºC to +55ºC | -31ºF to +131ºF
Ingress protection IP67 (outdoors)
Lightning protection IEC61312-1
8/20us, 8kA max
DC grounded, all ports
MTBF >1,000,000 hours
Compliance RoHS
Operational humidity 5% to 95%, non condensing
mechanical
Dimensions H x D x W 239 x 217 x 89mm | 9.4 x 8.54 x 3.5in
Weight 8kg | 17.63lbs
Finish Painted light grey
Connectors DIN 7-16 (F) x 4
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
DDF0015F10V2-1 TWIN DUAL DUPLEXED FILTER 899-915/944-960 REJ 50 @894, NO DC

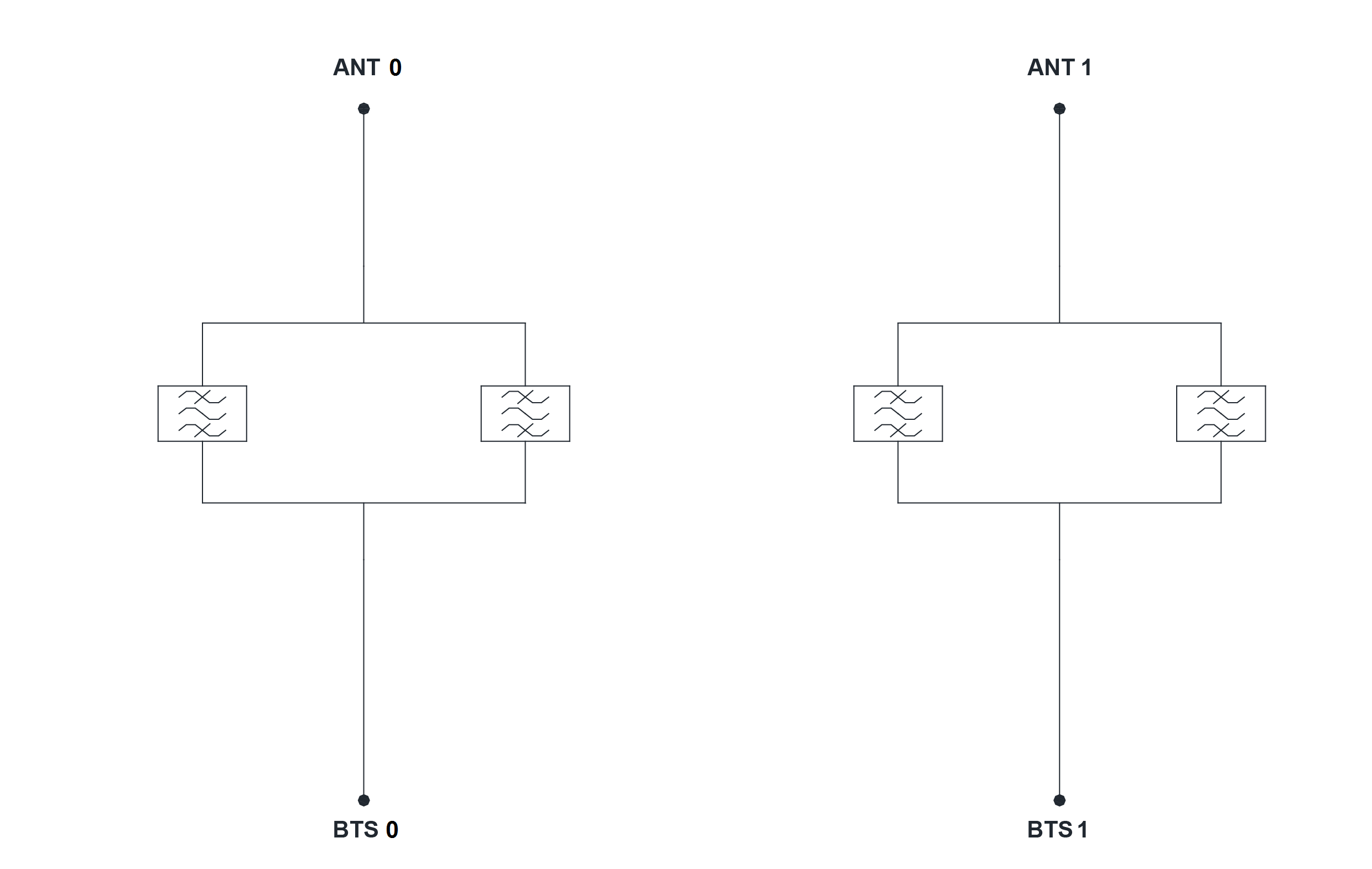

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

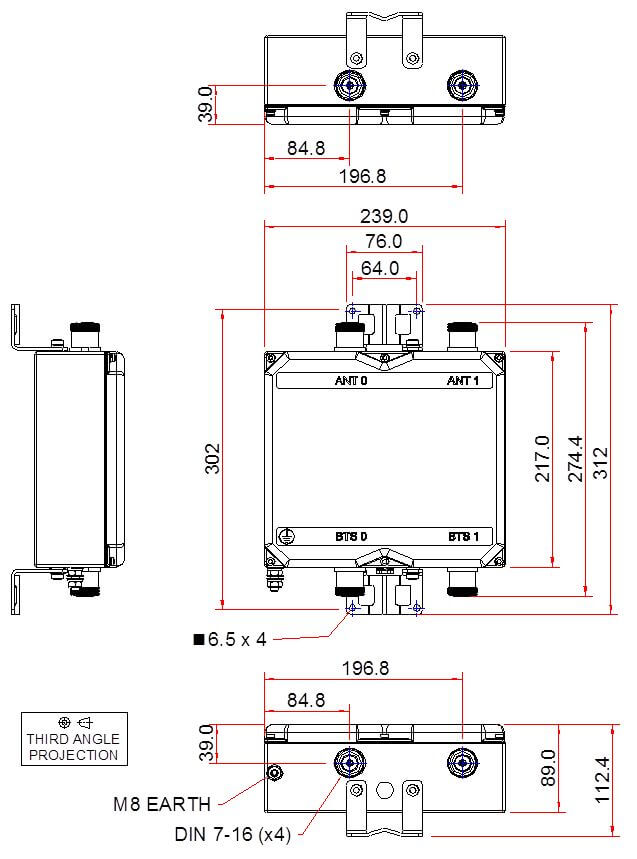

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
