Spinner OSL Calibration Kit

Introducing the Spinner OSL Compact Calibration Kits, precision tools engineered to ensure accurate and reliable calibration for your iVA cable and antenna analyzer. These calibration kits are meticulously designed to meet the highest industry standards, guaranteeing optimal performance in RF testing and measurements.

The calibration kits feature advanced Open-Short-Load (OSL) technology, enabling quick and straightforward calibration procedures. With their compact and portable design, these kits offer unparalleled convenience for field and laboratory applications.

Crafted with precision and built to last, these calibration kits are the perfect companions for your iVA cable and antenna analyzer, delivering consistently accurate results and minimizing measurement uncertainties.

FEATURES

  • Wide frequency range: DC to 7.5GHz
  • Compact Open Short Load standards in one handy unit

technical specifications
key specifications
Frequency rangeDC to 7.5GHz
open
Phase Deviation2deg max @DC to 4GHz
3deg max @4GHz to 7.5GHz
short
Phase Deviation1.5deg max @DC to 4GHz
2.5deg max @4GHz to 7.5GHz
load
DC - Resistance50Ohms +/- 0.5Ohms
Return Loss40dB min @DC to 6GHz
35dB min @6 to 7.5GHz
Power rating0.5W max
iva calibration data
Kaelus iVA comes pre-configured with the respective calibration data, simply select the correct Cal kit in the Kaelus Unify app for seamless functionality.
Calibration Kit part numberR29-4455CA123899
Calibration Kit Connector N type female4.3-10 female
OSL Kit selection in Kaelus Unify appSpinner BN-533863 N(f)Spinner BN-533336 4.30 (f)
environmental
Temperature range-10°C to +55°C | +14°F to +131°F (operational)
mechanical
Weight0.2kg | 0.44lb approx.
ConnectorsSee ordering information
ordering information
Part NumberDescription
R29-4455Compact OSL calibration Kit - N Female
CA123899Compact OSL calibration Kit - 4.3-10 Female
mechanical block diagram

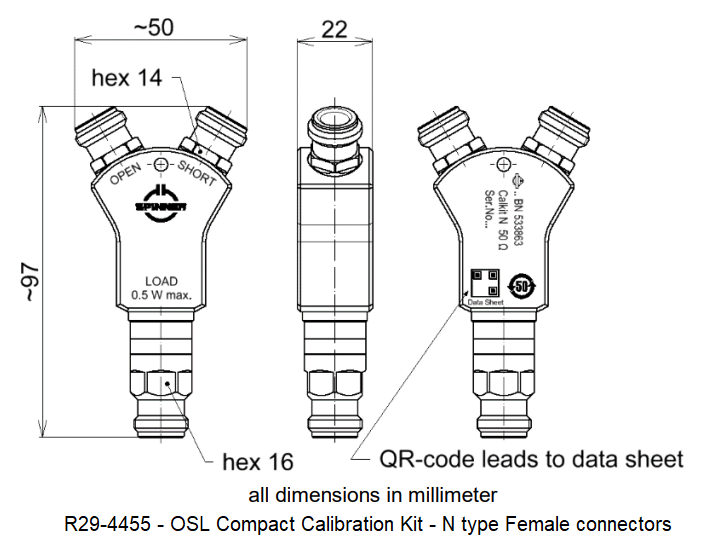

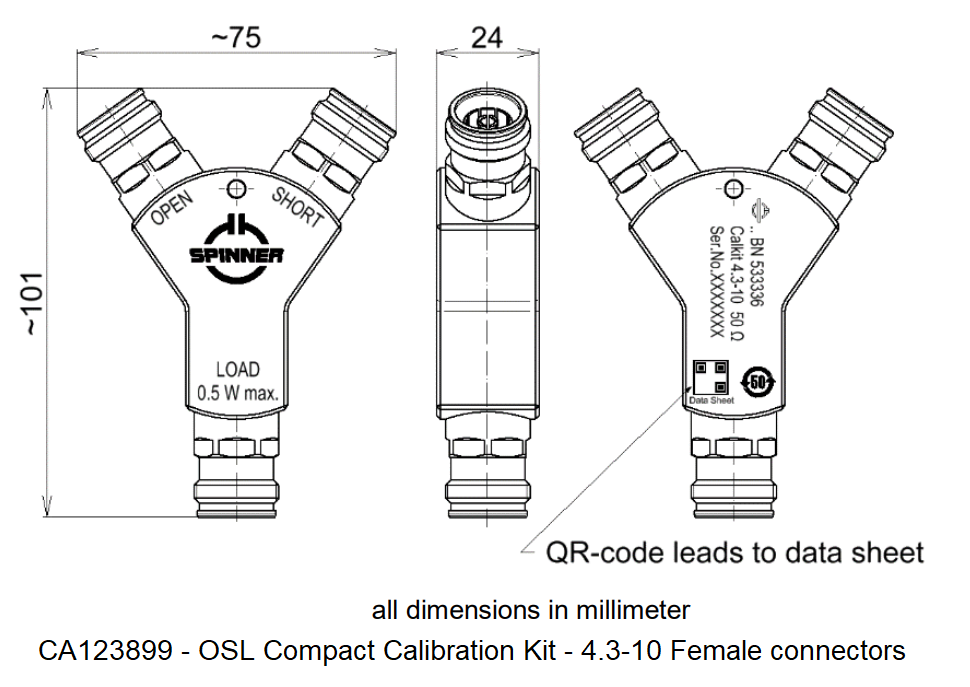

MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
